488006 - M8 / M8 – cables

488006 - M8 / M8 – cables

Part-No.
488006
Type
STG3-M8/KUW3-M8 0,6M PUR
Article on stock
PU
1
M8 / M8 – cables
Actuator sensor interface
Logo

Description

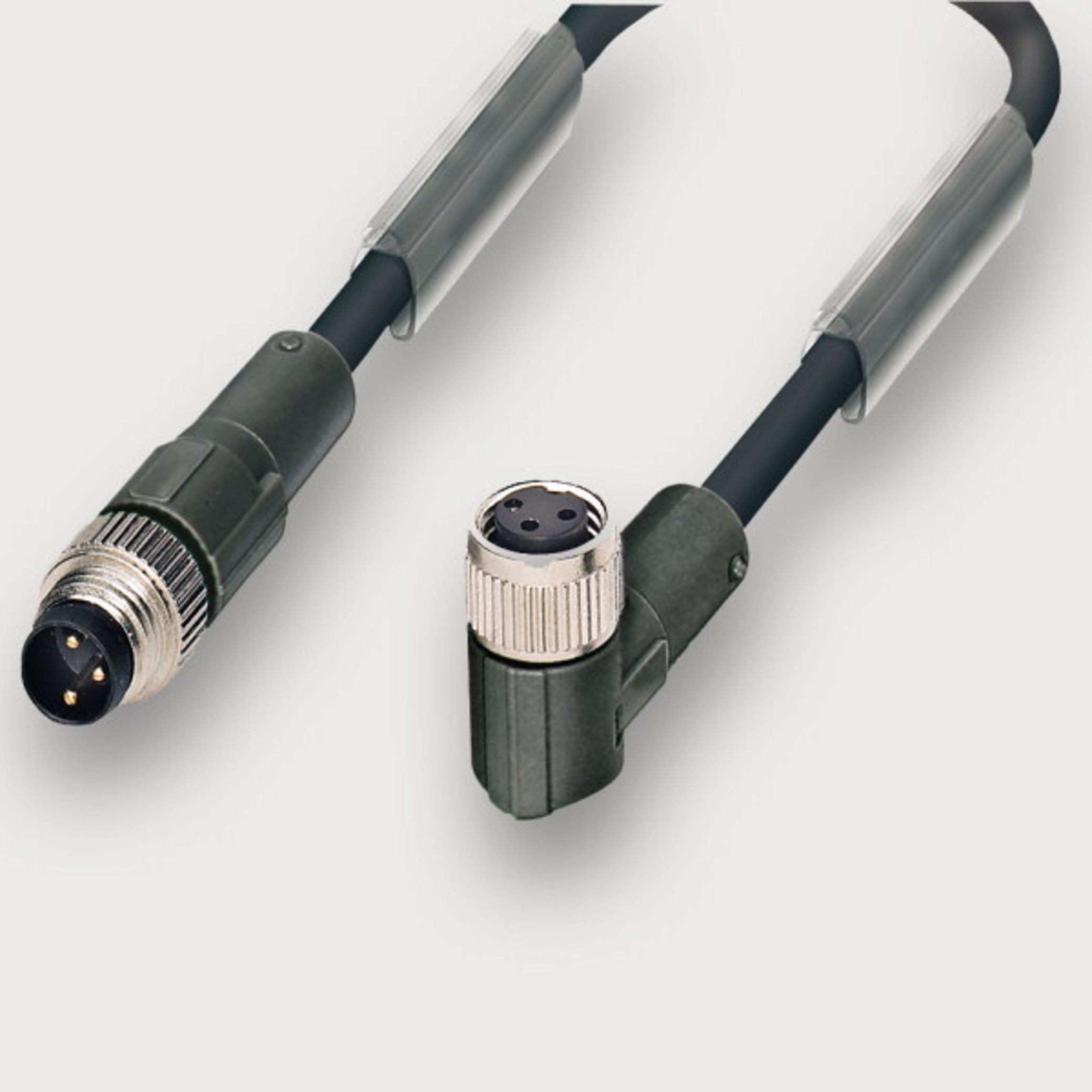

Male M8 straight to female M8 angled with PUR cable
self-locking screwed connection
c-track compatible, halogen free

Technical Data

Technical data

Rated voltage UN
AC/DC24V
Rated voltage min.
30 V
Rated voltage max.
60 V
Rated current
4
Pole number
3
Cable length
0,6 m

General

Form male 1
  • M 8
  • male
  • straight
Form male 2
  • M 8
  • female
  • angle connector
Rated insulation voltage
100 V
Test voltage
1500 V
Degree of polution
3
Contact resistance
< 5 mΩ
Flamability according to UL 94
V0
Protection class
IP65/67/68
Housing material
TPU
Color of the housing
black
Contact material
CuSn, gold-plated
Thread material
Zinc die-casting, nickel-plated
Material sealing ring
NBR
Mounting
Breakaway torque 0.2 Nm
Number of conductors/cross-section
3 × 0.25 mm² (32 × 0.1)
Number of conductors
3
Jacket material
PUR
Jacket color
black
Conductor insulation
PP
Cable diameter
3,6 mm
Bending radius
10×D
Minimum bending radius moving
10×D
Storage temperature range
-30°C…90°C
Temperature range connector
-25°C…90°C
Temperature range fixed
-40 °C … +80 °C
Temperature range moving
-25 °C … +80 °C
Weight
0,03 kg/piece
Approvals
cULus (E224249)
PU
1 piece
C-track chain properties
Type B
Conduction properties (TYPE A+B+C)
  • PUR halogen free for extreme demands
  • Very good chemical stability
  • Very resistant to oils and lubricants
  • Very high abrasion resistance
  • Halogen free
  • Silicone free, free of paint wetting impairment substances
  • Resistant to microbes and hydrolysis
  • Good UV stability
Dimensions
PIN assignment
Logo
488006 - M8 / M8 – cables488006 - M8 / M8 – cables
Accessories
Torque setting tool M 8: Part-No. 490090 | DM-SET M8 | PU: 1 unit
