462050 - M12 - cables
Part-No.
462050
Type
KUW3-M12 5M PUR
Article on stock
PU
1
M12 - cables
Actuator sensor interface
Logo


Description

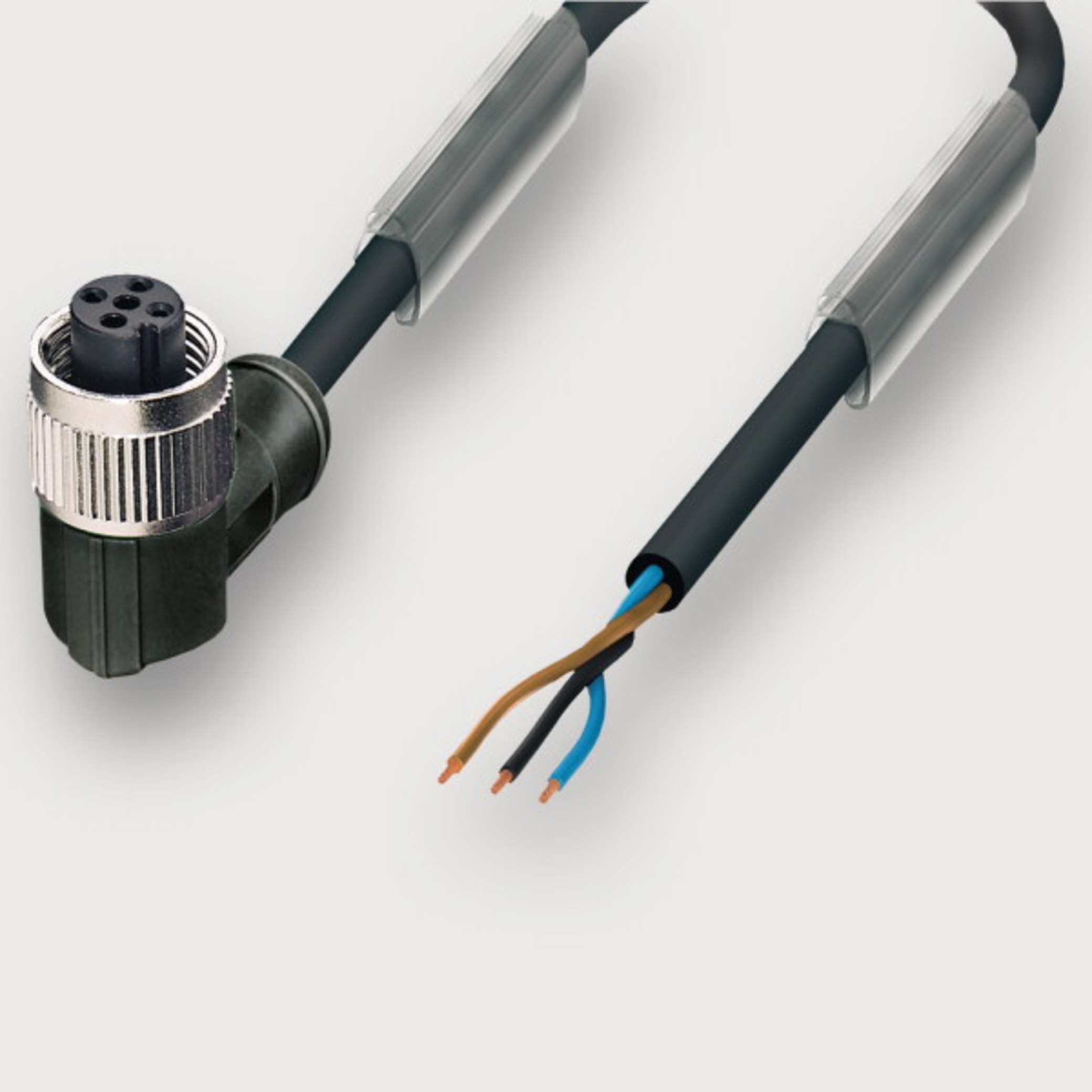

Female M12 angled with PUR cable, open end
self-locking screwed connection
c-track compatible, halogen free
Technical Data
Technical data
Rated voltage UN
AC/DC24V
Rated voltage max.
250 V
Rated current
4
Pole number
3
Cable length
5 m
Coding
A
General
Form male 1
- M 12
- female
- angle connector
Form male 2
line end open
Rated insulation voltage
250 V
Test voltage
2500 V
Degree of polution
3
Contact resistance
< 5 mΩ
Flamability according to UL 94
V0
Protection class
IP65/67/68
Housing material
TPU
Color of the housing
black
Contact material
CuSn, gold-plated
Thread material
Zinc die-casting, nickel-plated
Material sealing ring
NBR
Mounting
Breakaway torque 0.4 Nm
Number of conductors/cross-section
3 × 0.34 mm² (42 × 0.1)
Number of conductors
3
Conductor color
various
Jacket material
PUR
Jacket color
black
Conductor insulation
PP
Cable diameter
3,8 mm
Bending radius
10×D
Minimum bending radius moving
10×D
Storage temperature range
-30°C…90°C
Temperature range connector
-25°C…90°C
Temperature range fixed
-40 °C … +80 °C
Temperature range moving
-25 °C … +80 °C
Weight
0,19 kg/piece
Approvals
cULus (E224249)
PU
1 piece
C-track chain properties
Type B
Conduction properties (TYPE A+B+C)
- PUR halogen free for extreme demands
- Very good chemical stability
- Very resistant to oils and lubricants
- Very high abrasion resistance
- Halogen free
- Silicone free, free of paint wetting impairment substances
- Resistant to microbes and hydrolysis
- Good UV stability
Logo


Accessories
Torque setting tool M 12: Part-No. 490091 | DM-SET M12 | PU: 1 unit
