Part-No.
456805
Type
KUW5-M12(C) 5m PUR
Article on stock
PU
1
M12 - cables
Actuator sensor interface
Logo

Description

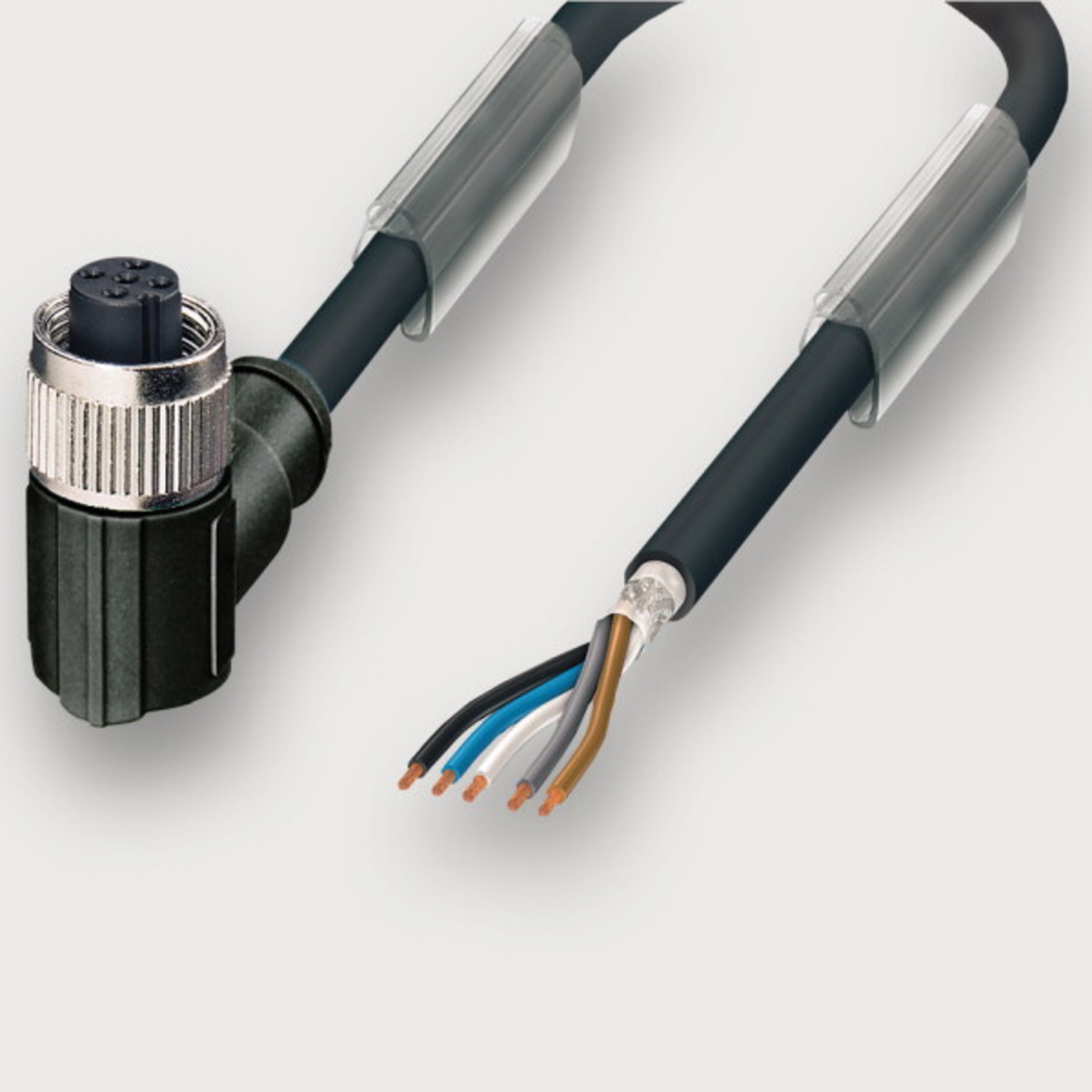

Female M12 angled with PUR cable, shielded 360°, open end
self-locking screwed connection
c-track compatible, halogen free

Technical Data

Technical data

Rated voltage UN
AC/DC24V
Rated voltage max.
60 V
Rated current
4
Pole number
5
Cable length
5 m
Coding
A
Shielding
360°

General

Form male 1
  • M 12
  • female
  • angle connector
Form male 2
line end open
Rated insulation voltage
63 V
Test voltage
1500 V
Degree of polution
3
Contact resistance
< 5 mΩ
Flamability according to UL 94
V0
Protection class
IP65/67
Housing material
TPU
Color of the housing
black
Contact material
CuSn, gold-plated
Thread material
Zinc die-casting, nickel-plated
Material sealing ring
NBR
Mounting
Breakaway torque 0.4 Nm
Number of conductors/cross-section
5 × 0.34 mm² (42 × 0.1)
Number of conductors
5
Jacket material
PUR
Jacket color
black
Conductor insulation
PP
Cable diameter
5,3 mm
Bending radius
10×D
Minimum bending radius moving
10×D
Storage temperature range
-30°C…90°C
Temperature range connector
-25°C…90°C
Temperature range fixed
-40 °C … +80 °C
Temperature range moving
-25 °C … +80 °C
Weight
0,3 kg/piece
Approvals
cULus (E224249)
PU
1 piece
C-track chain properties
Type B
Conduction properties (TYPE A+B+C)
  • PUR halogen free for extreme demands
  • Very good chemical stability
  • Very resistant to oils and lubricants
  • Very high abrasion resistance
  • Halogen free
  • Silicone free, free of paint wetting impairment substances
  • Resistant to microbes and hydrolysis
  • Good UV stability
Dimensions
Circuit diagram
Action chart
Pin layout
