439006 - Connection cables M 12 with solenoid plug BI, PUR cable

439006 - Connection cables M 12 with solenoid plug BI, PUR cable

Part-No.
439006
Type
STG3-M12/LZ-BI 0° 0,6M PUR
Article on stock
PU
1

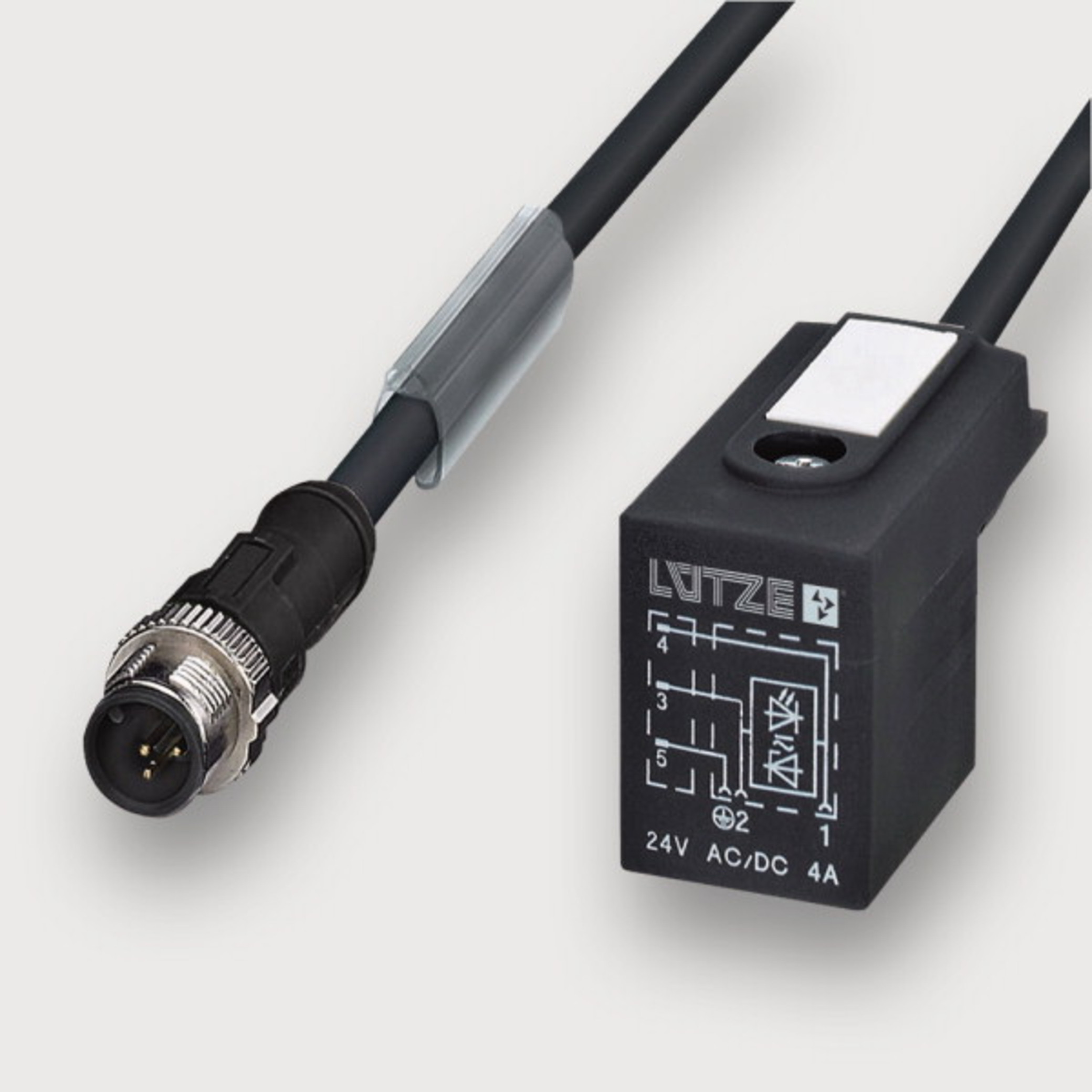

Connection cables M 12 with solenoid plug BI, PUR cable
Actuator sensor interface
Logo

Description

Male M12 straight to valve suppressor form B / form BI
with protection device and LED status indication
c-track compatible, halogen free

Technical Data

Technical data

Rated voltage UN
AC/DC24V
Rated voltage min.
10 V
Rated voltage max.
28 V
Rated current
4
Rated frequency fN
50 Hz / 60 Hz
Protection device
Z-diode + LED
Pole number
3
Cable length
0,6 m
Status indication
I/O: LED yellow
Current Consumption
4 mA
Cut-off peak
≤ 52 V
Holding Capacity
100 VA

General

Form male 1
  • M 12
  • male
  • straight
Form male 2
Valve connector form B Ind.
Rated insulation voltage
32 V
Degree of polution
3
Contact resistance
< 5 mΩ
Flamability according to UL 94
V0
Protection class
IP65/67
Housing material
TPU
Color of the housing
black / transparent
Contact material
CuSn, gold-plated
Thread material
Zinc die-casting, nickel-plated
Mounting
Breakaway torque 0.4 Nm
Number of conductors/cross-section
3 × 0.5 mm²
Number of conductors
3
Jacket material
PUR
Jacket color
black
Conductor insulation
PP
Cable diameter
4,5 mm
Bending radius
10×D
Minimum bending radius moving
10×D
Storage temperature range
-30°C…90°C
Temperature range connector
-25°C…90°C
Temperature range fixed
-40 °C … +80 °C
Temperature range moving
-20 °C … +80 °C
Weight
0,078 kg/piece
PU
1 piece
C-track chain properties
Type B
Conduction properties (TYPE A+B+C)
  • PUR halogen free for extreme demands
  • Very good chemical stability
  • Very resistant to oils and lubricants
  • Very high abrasion resistance
  • Halogen free
  • Silicone free, free of paint wetting impairment substances
  • Resistant to microbes and hydrolysis
  • Good UV stability
Comments
Silicone free, Free from paint wetting impairment substances, resistant to microbes and hydrolysis Very good resistance to acids, alkalines and solvents. The material resistance is based on the application for use with aggressive media.
Dimensions
PIN assignment
Pin layout
Logo
Accessories
Torque setting tool M 12: Part-No. 490091 | DM-SET M12 | PU: 1 unit
