Part-No.
420020
Type
STG8-M12/KUG8-M12 2,0M PUR
Article on stock
PU
1
M12 / M12 – cables
Actuator sensor interface
Logo

Description

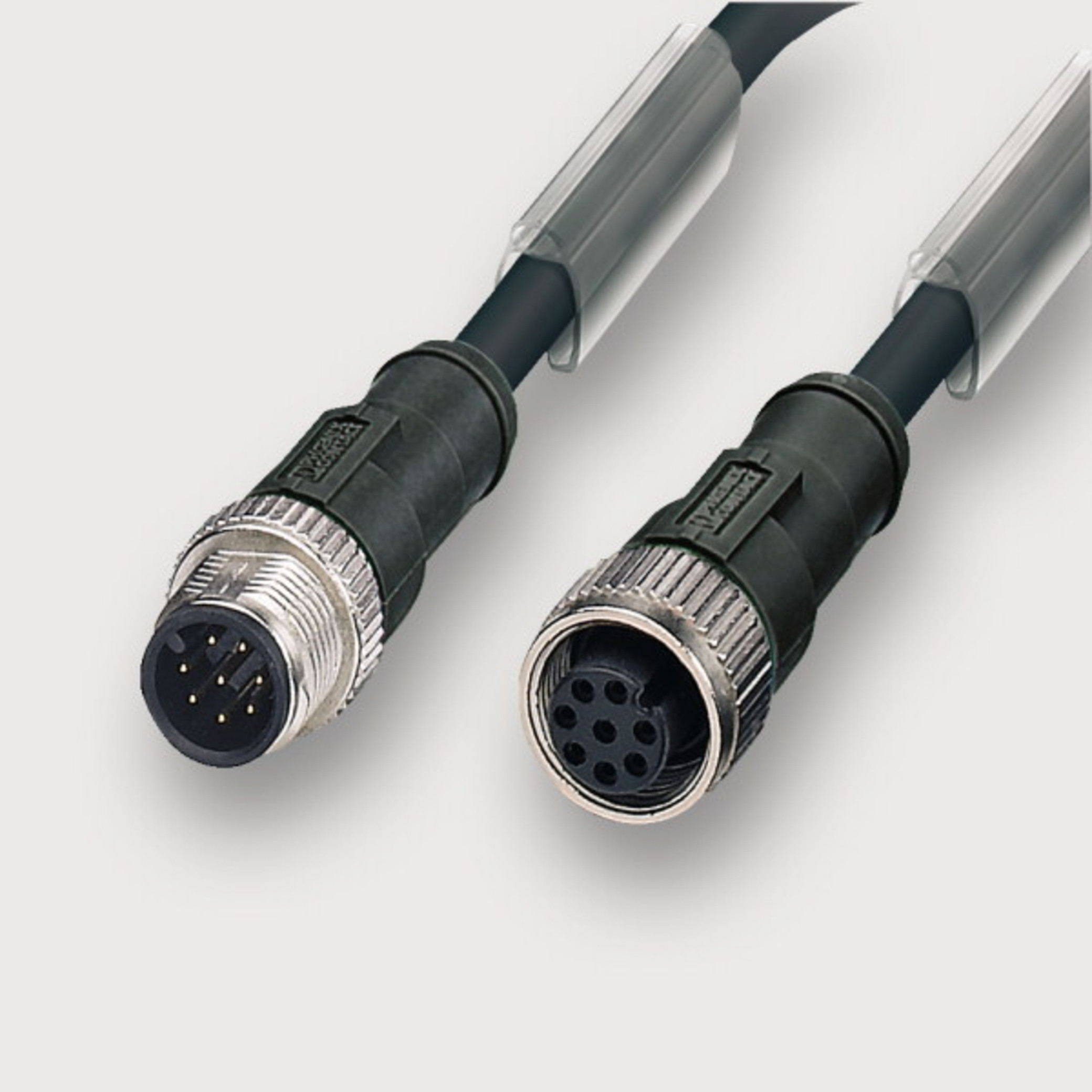

Male M12 straight to female M12 straight with PUR cable
self-locking screwed connection
c-track compatible, halogen free

Technical Data

Technical data

Rated voltage UN
AC/DC24V
Rated voltage max.
30 V
Rated current
2
Pole number
8
Cable length
2 m
Coding
A

General

Form male 1
  • M 12
  • male
  • straight
Form male 2
  • M 12
  • female
  • straight
Rated insulation voltage
36 V
Test voltage
1500 V
Degree of polution
3
Contact resistance
< 5 mΩ
Flamability according to UL 94
V0
Protection class
IP65/67/68
Housing material
TPU
Color of the housing
black
Contact material
CuSn, gold-plated
Thread material
Zinc die-casting, nickel-plated
Material sealing ring
NBR
Mounting
  • Breakaway torque 0.4 Nm
  • Breakaway torque 0.4 Nm
Number of conductors/cross-section
8 × 0.25 mm² (32 × 0.1)
Number of conductors
8
Jacket material
PUR
Jacket color
black
Conductor insulation
PP
Cable diameter
5,9 mm
Bending radius
10×D
Minimum bending radius moving
10×D
Storage temperature range
-30°C…90°C
Temperature range connector
-25°C…90°C
Temperature range fixed
-40 °C … +80 °C
Temperature range moving
-25 °C … +80 °C
Weight
0,14 kg/piece
Approvals
cULus (E224249)
PU
1 piece
C-track chain properties
Type B
Conduction properties (TYPE A+B+C)
  • PUR halogen free for extreme demands
  • Very good chemical stability
  • Very resistant to oils and lubricants
  • Very high abrasion resistance
  • Halogen free
  • Silicone free, free of paint wetting impairment substances
  • Resistant to microbes and hydrolysis
  • Good UV stability
Dimensions
PIN assignment
Logo
420020 - M12 / M12 – cables420020 - M12 / M12 – cables
Accessories
Torque setting tool M 12: Part-No. 490091 | DM-SET M12 | PU: 1 unit
